Spatial Aspect Viewer

About:

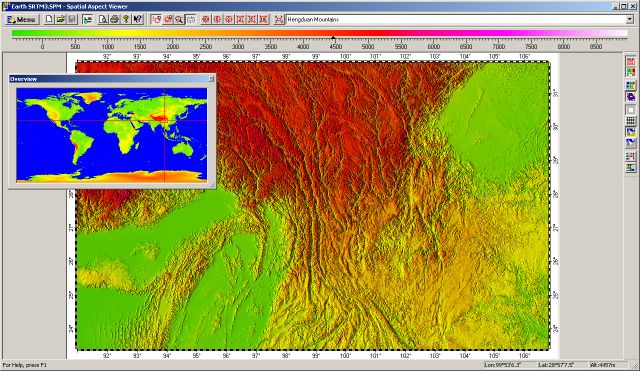

The Spatial Aspect
Viewer is targeted for observation spatial raster data, especially Digital
Elevation Models (DEM).
Features:
- Supported
profiles of work: DEM, Global Land Cover Characteristics (GLCC), Digital
Raster Graphics (DRG) and Monochrome Bitmap Image.
- Supported
modalities, originated from Goddard SFC Image Files: altitudes, counting,
roughness, sloppiness and albedo.
- Comprehensive
rendering management in respect of colorizing elevations with dynamic
legend indication.
- Comprehensive
rendering management in respect of shading slopes for different
illuminations.
- Adjusted
color legend for GLCC map, kind of Olson Global Ecosystems (OGE), for near
to natural appearance, keeping distinguishing abilities.
- Isometric
ratio attraction by using canvas, which keeps extents of region over its
movement.
- Full-fledged
navigation with smart cursor, including smooth zoom.
- Magnify
glass.
- Zoom-step
commands, including small step zoom by mouse wheel.
- Navigation
with assigned regions of interest.
- Supported
projections: Cylindrical and Polar Stereographic for all terrestrial
planets and Moon, and also Universal Transverse Mercator (UTM) and
Interrupted Good Homolosine for Earth only.
- Indication
of direct projection components and interpreted values of raster data in
status bar.
- Inverse
projection indication for maps in Polar Stereographic projection in status
bar.
- Reading
data from all compressed raster files and their collections, which are in
proprietary formats of author, including multi-resolution collections.
- Reading
data from files in majority of spatial raster formats with extensions:
*.dem, *.bil, *.img, *.hgt, *.hgt.bin, *hgt.zip, *.srtm, *.250, *.1, *.24
and *.ddf.
- Export
rendered result to PNG-files.
- Export
data to plain *.dem or *.bil file with headers.
- Printing
raster maps with legend and title.
- Comprehensive
help system over each visual feature (legacy .HLP support
required).
Requirements for installation:
- Any Windows OS for desktop or laptop computer, XP
recommended for higher speed, although Microsoft does not support it.
- Graphics accelerator is not required.
- At least 1GB of memory recommended.
- Some space on disk should be reserved for data
collections thyself. For currently existed collections 27GB will be enough, but
better if you have more. Also you can have less for case of using only
particular collections.
View license agreement for the program
Installation file:
SpecVS.msi -
Program version: 1.0.0.1; Size: 2,282,496 bytes (2.17 MB); MD5: 6E91703ACFD0823A605C6308DC1B0175.
Executable file info:
SpecVS.exe - File version: 1.0.0.1; Date: 2016-06-05; Size: 622,592 bytes (608 KB); MD5: 112D7BBCC3D3E622638AD0C782E7C474.
